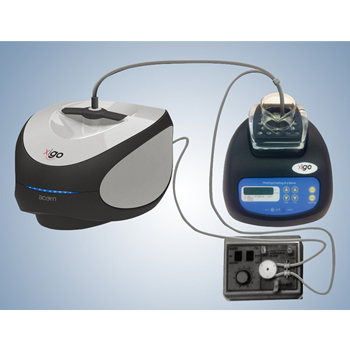

Xigo NMR Acorn Flow

Instrument introduction:

NMR (13MHz) nuclear magnetic resonance technology is used to grasp the surface chemistry, affinity, wettability, and specific surface area (non-dry powder particles) of wet particles between suspensions and particles An epoch-making analytical instrument can be tested directly in a thick state without the need for pretreatment such as drying or vacuum; it helps researchers in quality control and improvement, shortening development time, screening process recipes, etc.

main feature:

No sample preparation required
No dilution required
Measurement time is less than 5 minutes
Test wet specific surface area available
Wetting properties of particles
Analysis of Adsorption Characteristics of Dispersants
Particle dispersion analysis
No particle shape and aspect ratio restrictions
Rich applicability (Q & C, R & D)

Special performance:
Passed China's "Invention Patent Certificate": ZL 2007 8 0016435.3

Customer applications already used worldwide:
Cutting-edge pottery: management and improvement of wet processes or processes, decentralized quality control and R & D
Nanotechnology: the chemical state of the surface of nanoparticles, such as: adsorption and desorption, changes in specific surface area, etc.
Electronic materials / parts: Development and quality control of thick slurry and slurry (CMP)
Ink: carbon black, dispersion of inorganic / organic pigments, optimum grinding conditions, surface affinity and chemical and physical conditions
Energy: Carbon black for batteries, solar panels, etc., dispersion of carbon nanotubes and pastes, chemical and physical state of particle surfaces
Pharmaceutical: differences in API wettability, affinity and water absorption caused by quality differences between different batches
Others: All densely dispersed suspension liquids, high aspect ratio samples (nano fibers, carbon nanotubes, etc.)







Technical Parameters
Model: Acorn Flow
Connection: USB to computer / notebook
Power: 100v ~ 220v, 3A, 50/60 Hz
Peripheral accessories:
Semiconductor temperature control accessories
Digital mixing tank
Peristaltic pump system
FTP (Teflon material) test tube
Features:
1) T1 relaxation time test, wet specific surface area calculation
2) T2 relaxation time test, wet specific surface area calculation
3) T2 relaxation time test over time
Application:
Suitable for samples with high concentration, high solid content and fast sedimentation
Mobile dynamic measurement.
